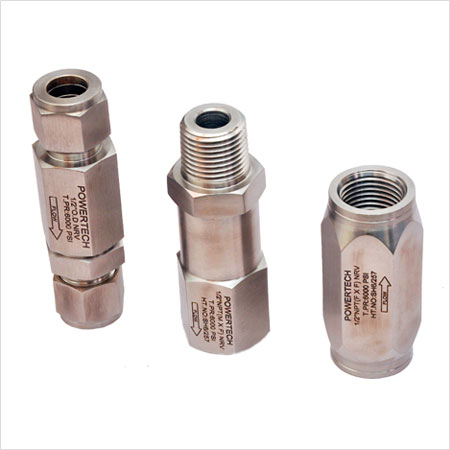

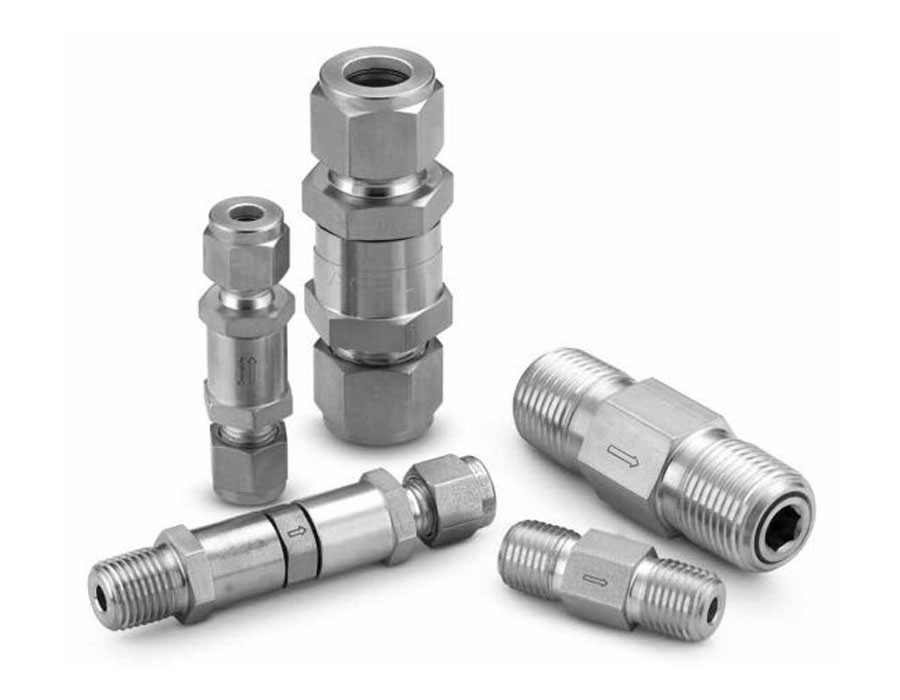

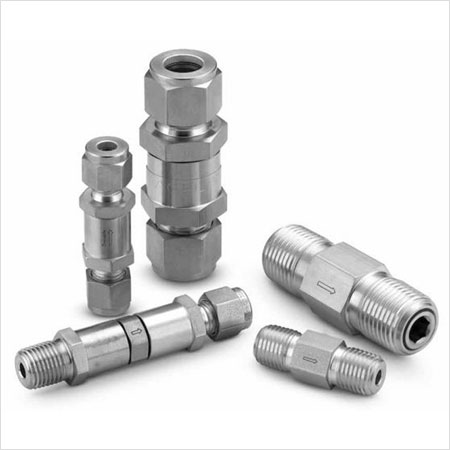

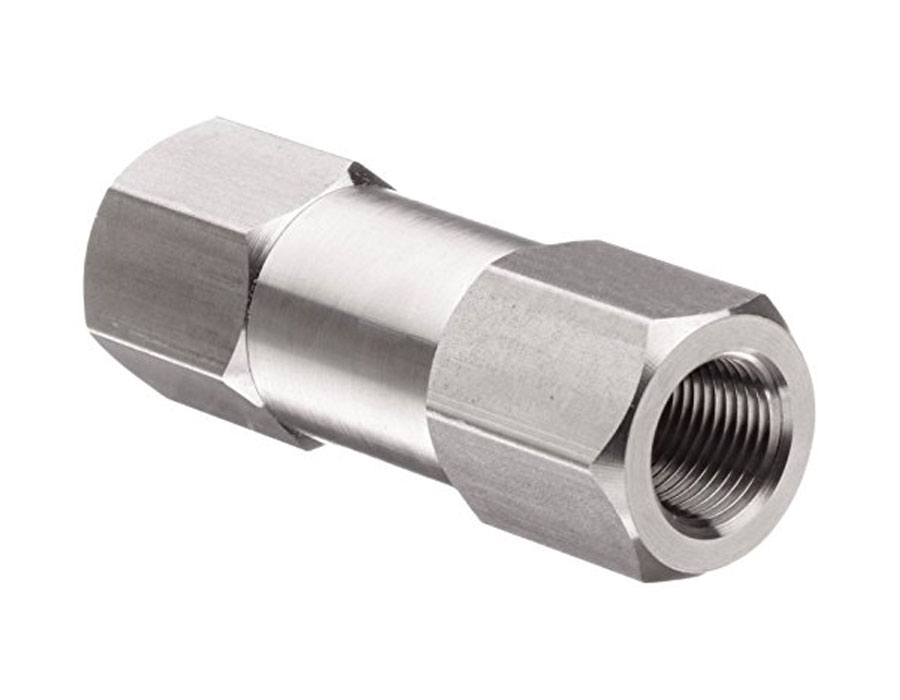

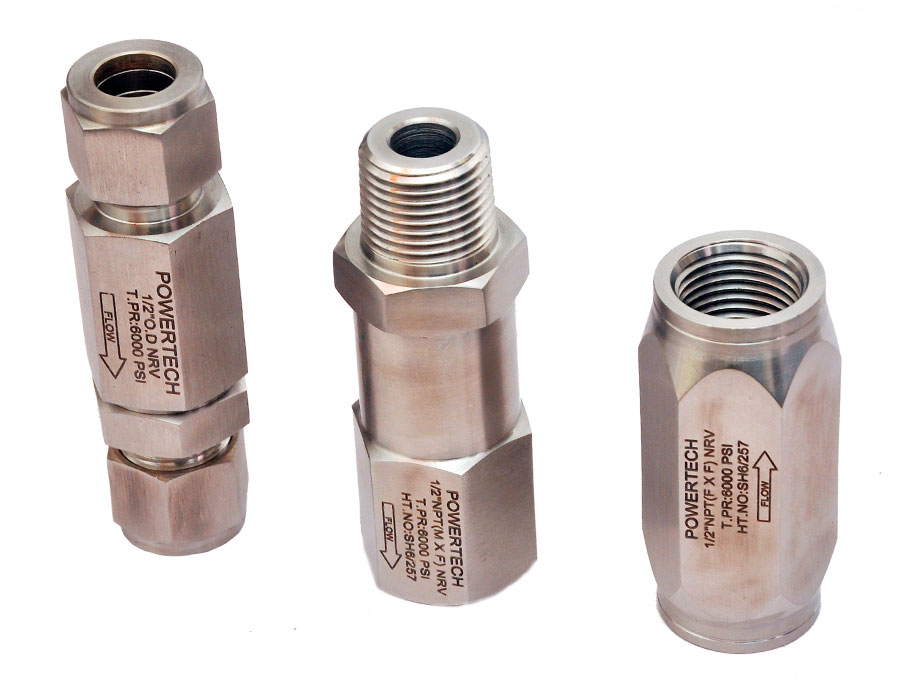

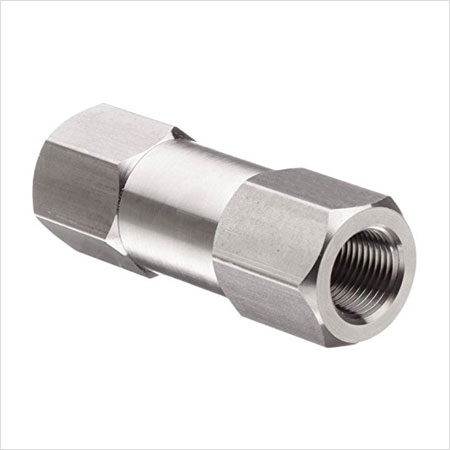

POWERTECH poppet or ball check valves are available in stainless steel and are rated up to 10,000 psi. Our check valves ensure one-way directional flow, preventing back-flow during normal system operation or maintenance. PVI check valves are used in systems where back-flow can be detrimental to system safety and performance, eliminating system contamination and reducing the risk of mixing. PVI Check Valves are designed with high integrity leak rates & resealing capabilities for unidirectional flow of fluids & gases in Chemical, Processing, Oil & Gas production & transmission, Pharmaceutical, Power & Utilities.

• DESIGN : Poppet or Ball Type seal
• SEAT : Viton.
• PACKING : Standard - VITON
  Optional - GRAPHOIL, PEEK, CFT, PTFE etc.
• SIZE : 1/8” to 1” in Tube End
  1/8” to 4” in Screwed/ Socketweld/ Buttweld Fange End, etc.
• CRACKING PRESSURE : STD. 7 PSI (0.5 Bar), Other Optional.
• PRESSURE RATING : PTFE - 6,000 PSI @ 100 deg. F and High Pressure up to 10,000 PSI @ 100 deg. F
  GRAPHITE - 4,500 Psi.
• END CONNECTIONS : NPT, BSPT, BSPP, Butt Weld, Socket Weld, Compression Fittings.
• M.O.C : ASTM A 479/A276 Gr. 316(L), 304(L), Brass, etc.
• OTHER M. O. C’s: Inconel, Monel, Hastelloy C, Carbon Steel. 6MO etc.
• Products can be supplied to conform to NACE MR 0175.
• TEMPERATURE : PTFE - Max. up to 240 Deg. C
  VITON Max upto 200 Deg. C
  GRAPHITE - Max. up to 650 Deg. C.
• ORIFICE DIA. : 4.8 mm to 50 mm
• TESTING : Standard - Hydro Test, Pneumatic Test, Nitrogen Test
  Optional - Vibration, Temperature Cycling, Helium etc.

NOTE: VALVES WHICH ARE NOT ACTUATED FOR A LONG PERIOD OF TIME, MAY INITIALLY OPEN AT HIGHER THAN SUBSEQUENT PRESSURE.
